This site presents results from.

The script zwplots-los executes the master script ../xwplots to produce various plots of the synthetic white-light images.

Firstly, the master script is called to compile the code and compute a demo case. Then, the master script is called to plot the results by the following plot procedures:

• plot_los1 = Plot white-light image - 1 view
• plot_los1d
  = Plot white-light view and density slice
• plot_los2
  = Plot white-light image - 2 views
• plot_los2d
  = Plot 2 white-light views and density slice
• plot_los3
  = Plot white-light image - 1 view and 3 images
• plot_losmap1j
  = Plot white-light image as time-elongation plot (J-map)
• plot_losmap1p
  = Plot white-light image as time-position-angle plot (P-map)

Usage

The plot procedures can be called with various parameters as described in their headers.

Examples

The script zwplots-los produces the plots given below.

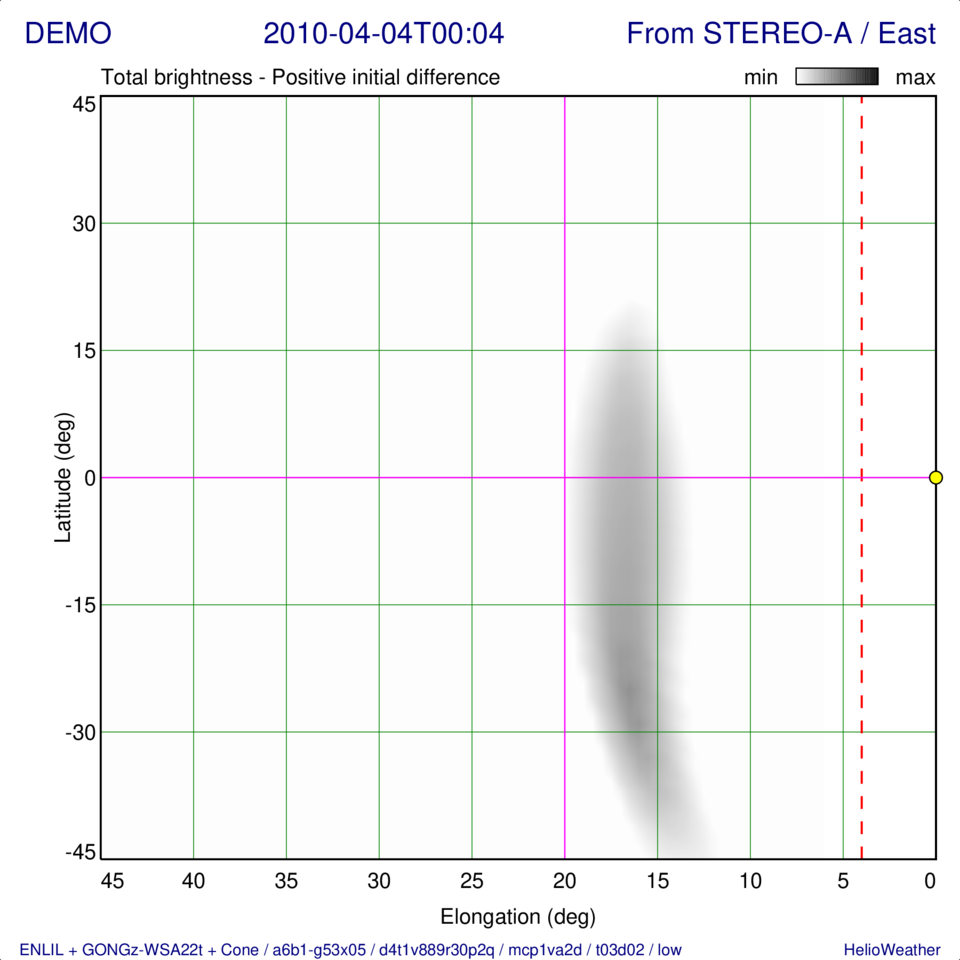

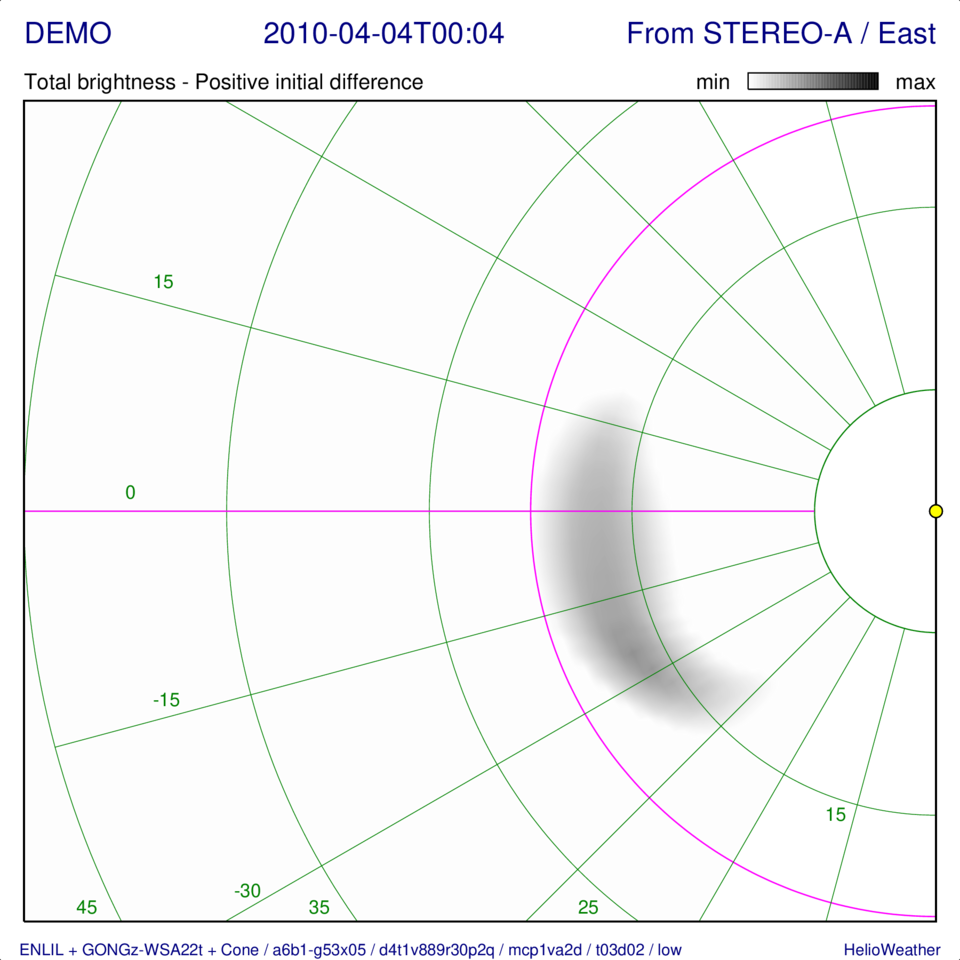

plot_los1

Options: -namobs “stereoa” -namlos “pidif” -zoom 2 (left)   /   Options: -namobs “stereoa” -namlos “pidif” -losxy 1 -zoom 2 (right)

  /

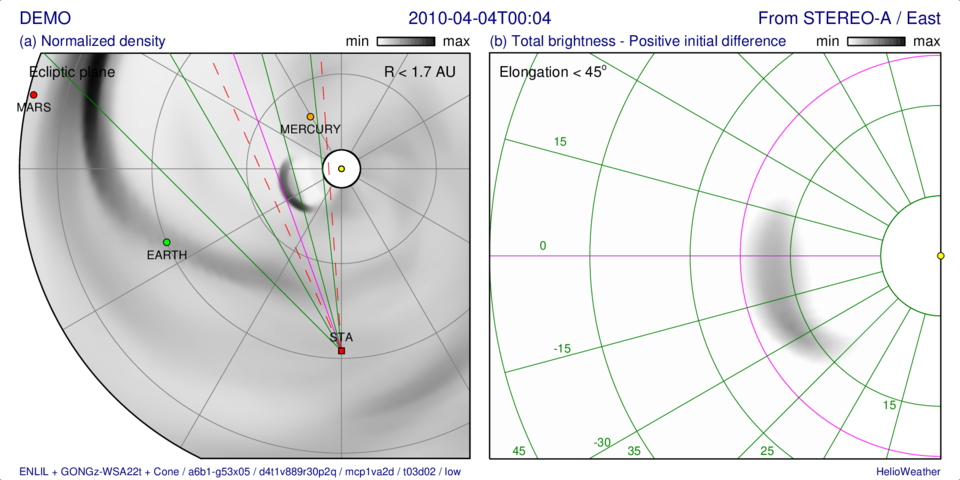

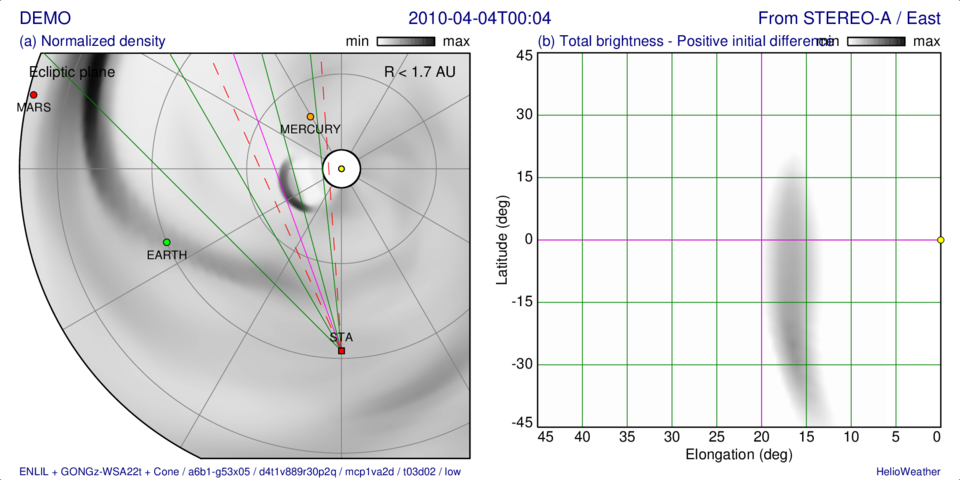

plot_los1d

Options: -namobs “stereoa” -namlos “pidif” -zoom 2

Options: -namobs “stereoa” -namlos “pidif” -losxy 1 -zoom 2

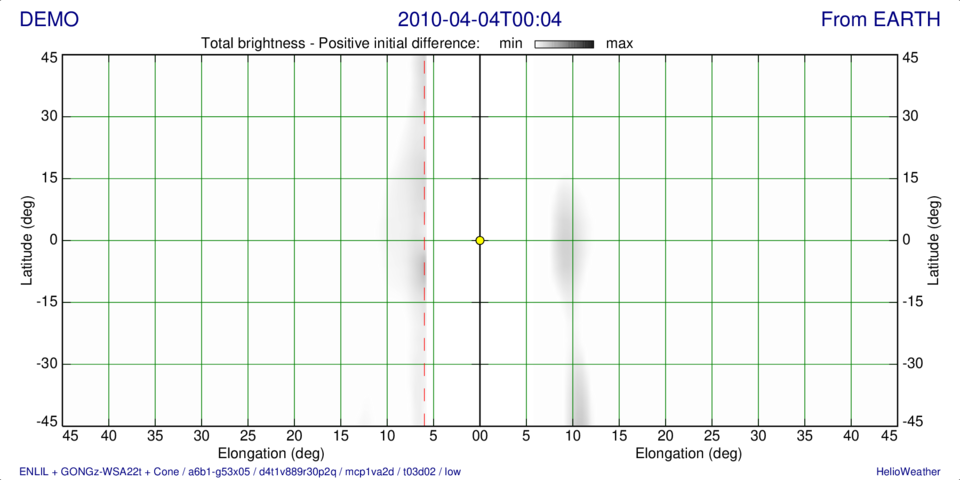

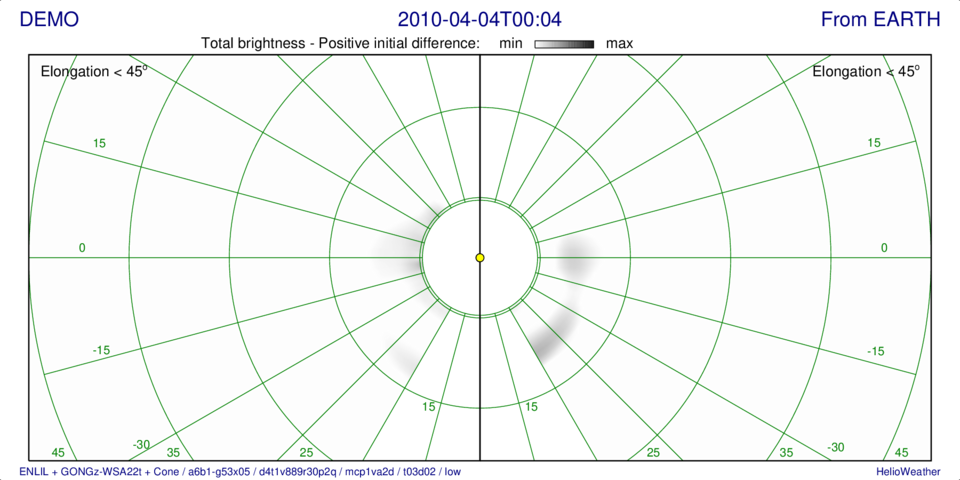

plot_los2

Options: -nam2obs [“earth”,“earth”] -namlos “pidif” -zoom 2

Options: -nam2obs [“earth”,“earth”] -namlos “pidif” -losxy 1 -zoom 2

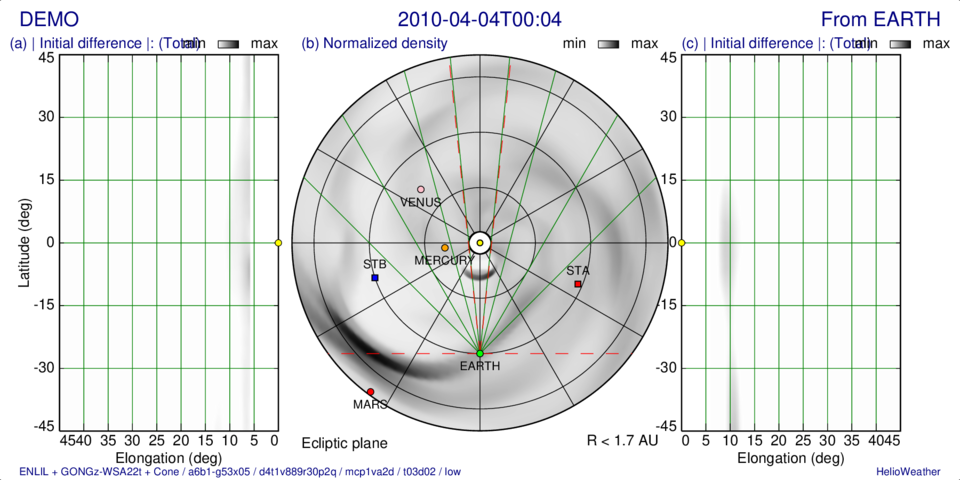

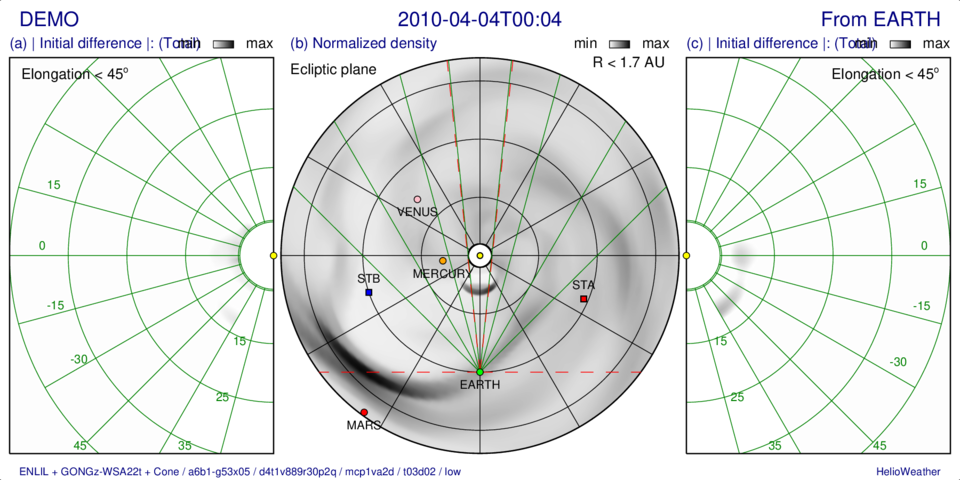

plot_los2d

Options: -nam2obs [“earth”,“earth”] -namlos “pidif” -zoom 2

Options: -nam2obs [“earth”,“earth”] -namlos “pidif” -losxy 1 -zoom 2

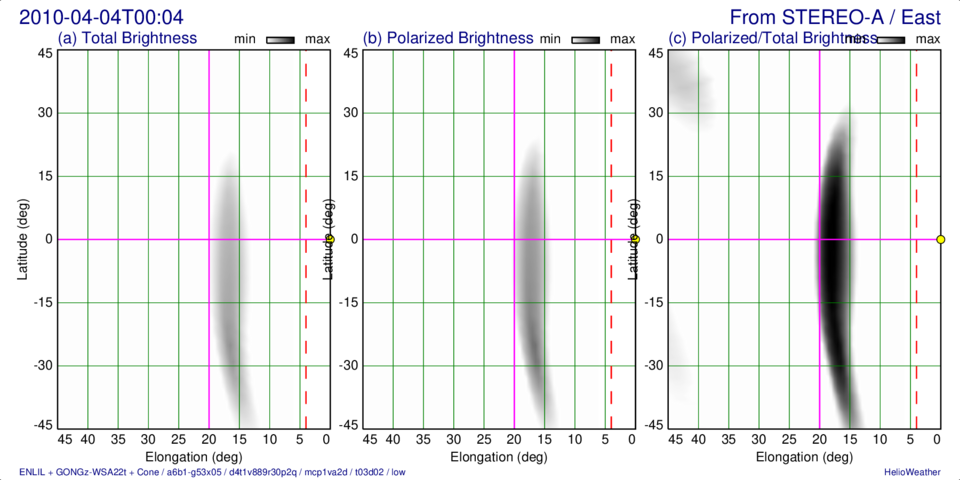

plot_los3

Options: -namobs “stereoa” -namlos “pidif” -zoom 2

Options: -namobs “stereoa” -namlos “pidif” -losxy 1 -zoom 2

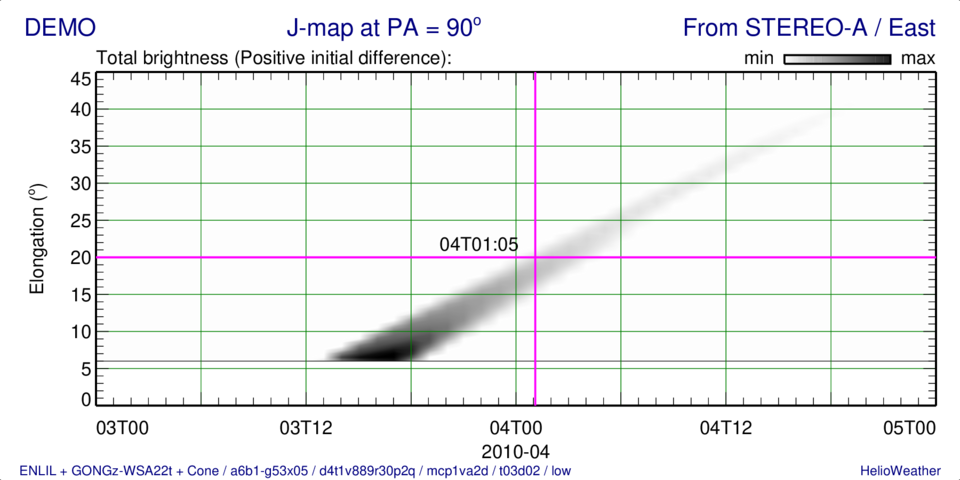

plot_losmap1j

Options: -namobs “stereoa” -namlos “pidif” -loselon 20 -loslat 0 -xplot [0,48] -zoom 2

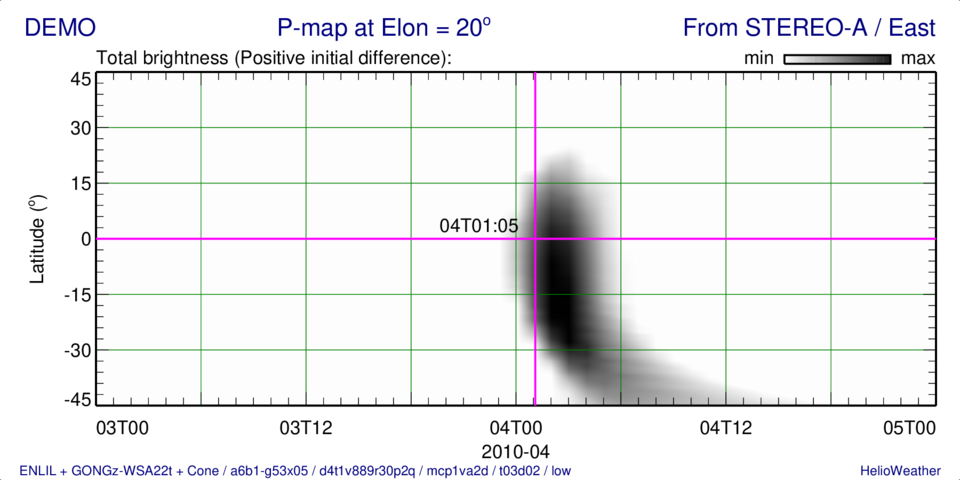

plot_losmap1p

Options: -namobs “stereoa” -namlos “pidif” -loselon 20 -loslat 0 -xplot [0,48] -zoom 2
