Example Runs / WPLOTS / WPLOTS-EVO

This site presents results from.

The script zwplots-evo executes the master script ../xwplots to produce various plots of the MHD variables as evolution at planets and spacecraft.

Firstly, the master script is called to compile the code and compute a demo case. Then, the master script is called to plot the results by the following plot procedures:

• plot_evo10o1 = Plot temporal profiles - 10 variables at 1 observer
• plot_evo1o5 = Plot temporal profiles - 1 variable at 1-5 observers
• plot_evo5o1 = Plot temporal profiles - 1-5 variables at 1 observer

Usage

The plot procedures can be called with various parameters as described in their headers.

Examples

The script zwplots-evo produces the plots given below.

plot_evo10o1

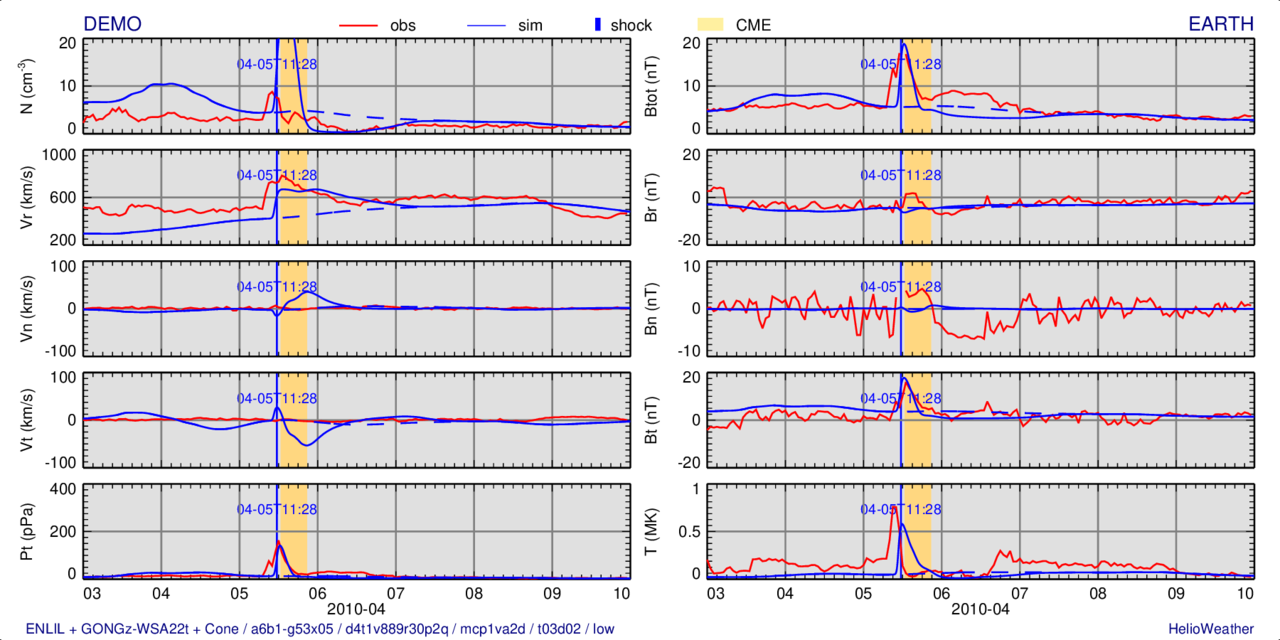

Options: -wide 1

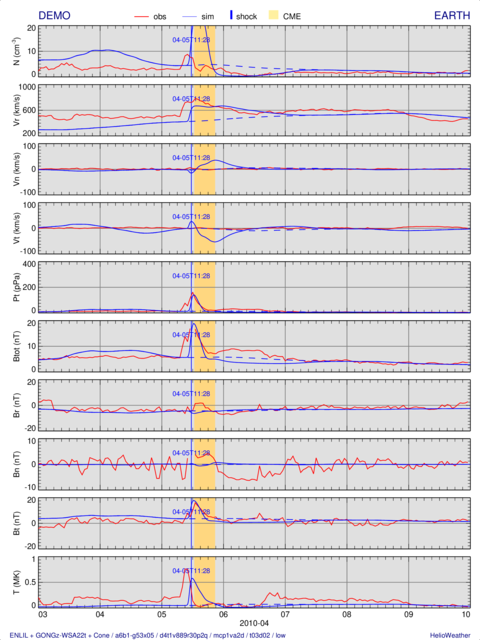

Options: -wide 0

plot_evo1o5

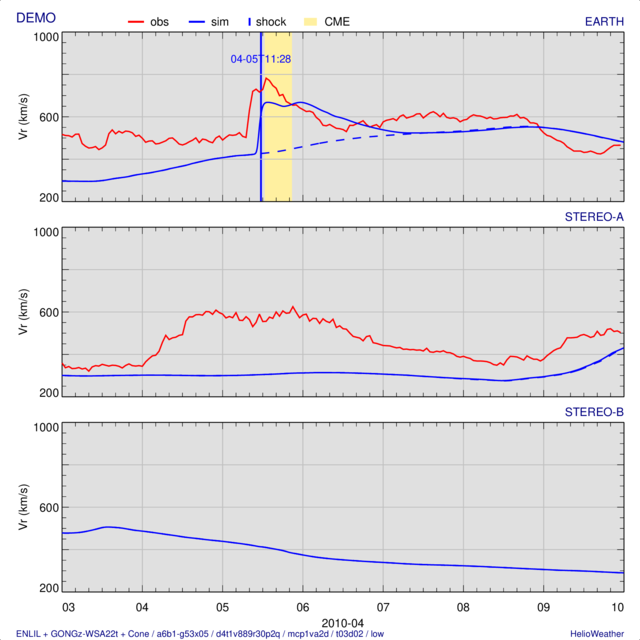

Options: -namobs [“earth”,“stereoa”,“stereob”] -namevo “vr” -wide 0

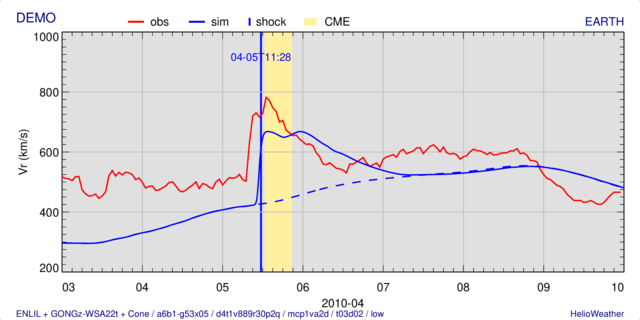

Options: -namobs [“earth”] -namevo “vr” -wide 2

plot_evo5o1

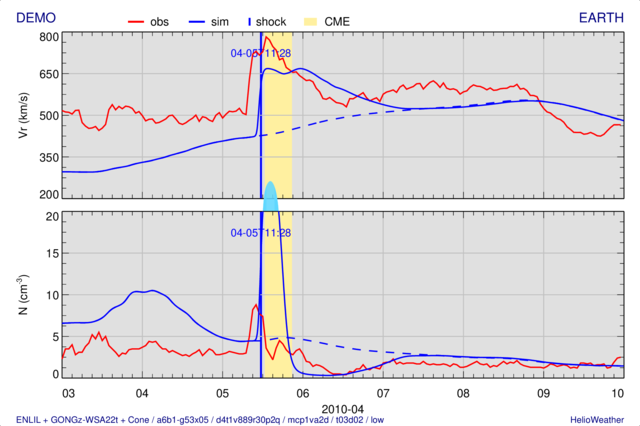

Options: -namevo [“vr”,“den”] -namobs “earth” -wide 2

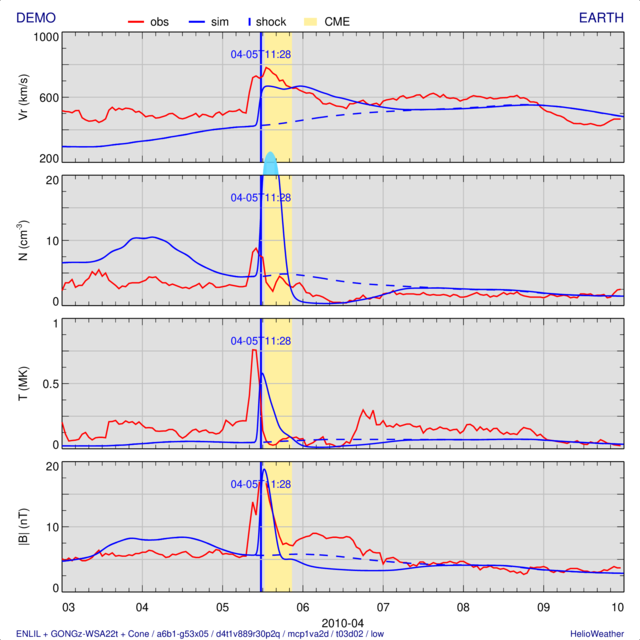

Options: -namevo [“vr”,“den”,“tem”,“btot”] -namobs “earth” -wide 0
